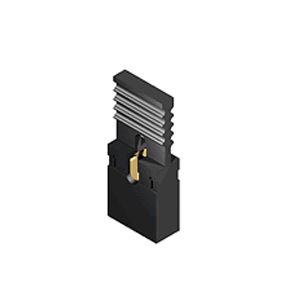

CS01 Series 2.54mm(.100) Dual Row Multiple Shunts

    • CS01 Series 2.54mm(.100) Dual Row Multiple Shunts

    • Tel:0510-85578880


◎ Rated current and voltage : 3A 250V AC
◎ Dielectric Withstanding Voltage : 1000V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >1000MΩ
◎ Operating Temperature : -40℃~ 105℃
◎ RoHS Compliant

CIRCUITS 02 CIRCUITS
Plating Code 2= Gold Flash Plated over 50μ” Nickel
Mate Parts CH31 Series straight type
CH31 Series right angle type
CH34 Series dual body straight type
CH85 dual row dual body straight type
CH81 Series dual row straight type
CH81 Series dual row angle angle type
CH84 Series dual row dual body straight type
CH84 Series dual row dual body right angle type
CH96 Series treble row right angle type
CH96 Series treble row straight type
