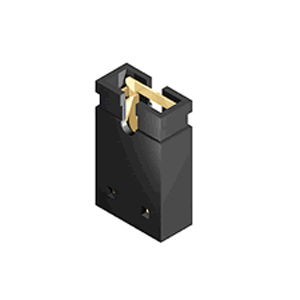

CS01 Series 2.54mm(.100) Dual Row Multiple Shunts

    • CS01 Series 2.54mm(.100) Dual Row Multiple Shunts

    • Tel:0510-85578880


◎ Rated current and voltage: 3A 250V AC
◎ Dielectric Withstanding Voltage : 1000V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >1000MΩ
◎ Operating Temperature : -40℃~ 105℃
◎ RoHS Compliant

CIRCUITS 02 CIRCUITS
Plating Code 2= Gold Flash Plated over 50μ” Nickel
Mate Parts CH31 Single Row Straight Pin Header
CH31 Single Row Right Angle Type Pin Header
CH34 Single Row Dual Body Straight Pin Header
CH85 Dual Row Dual Body Board Straight Type Pin
CH81Dual Row Straight Pin Header
CH81 Dual Row Right Angle Type Pin Header
CH84 Dual Row Straight Type Pin Header
CH84 Dual Row Right Angle Type Pin Header
CH96 Triple Row Straight Type Pin Header
CH96 Triple Row Right Angle Type Pin Header
