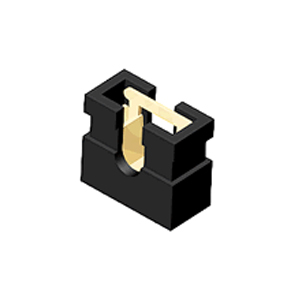

CS01 Series 2.00mm(.079) Dual Row Multiple Shunts

    • CS01 Series 2.00mm(.079) Dual Row Multiple Shunts

    • Tel:0510-85578880


◎ Rated current and voltage: 1A 250V AC
◎ Dielectric Withstanding Voltage : 1000V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >1000MΩ
◎ Operating Temperature : -40℃~ 105℃
◎ RoHS Compliant

CIRCUITS 02 CIRCUITS
Plating Code 2= Gold Flash Plated over 50μ” Nickel
Mate Parts CH11 Single Row Straight Pin Header
CH11 Single Row Right Angle Pin Header
CH21 Single Row Dual Body Straight Pin Header
CH75 Dual Row Dual Body Straight Pin Header
