SunLine Series

作者:优克雷  发表时间:2017-07-07 11:53


SunLine Series
ULTRA-COMPACT+DISTANCE+COST EFFECTIVE

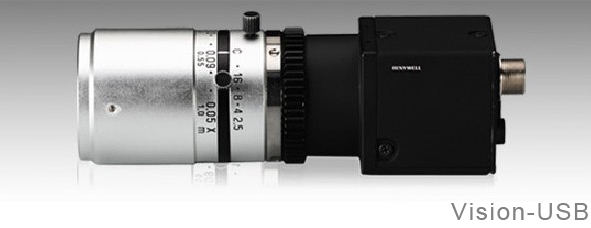

TheSunLine-U3 line of the world’ s smallest and fastest USB3.0 cameras offers a variety of low-cost, high-speed, CMOS image sensors, ranging from 1.3 to 6 megapixel. The SunLine-U3 also offers a host of new features, including enhanced opto-isolated GPIO; an on-camera frame buffer; non-volatile user data storage; new trigger modes; and imoroved imaging performance.



  • Low-cost,high-speed CMOS image sensors
  • USB 3.0,5 Gbit/s interface
  • Ultra-compact 29×29×30mm metal case,52 grams
  • IIDC Digital Camera Specification v1.32

USB 3.0 Models

SL-U3-13S2M/C-CS 1.3MP Sony IMX035 CMOS, 1/3’’,3.63μm,Rolling Shutter 1328×1048 at 120 FPS Coming Soon
SL-U3-13Y3M/C-CS 1.3MP Cypress VITA1300 CMOS, 1/2’’,4.8μm,Global Shutter 1280×1024 at 150 FPS Coming Soon
SL-U3-32S2M/C-CS 3.2MP Sony IMX036 CMOS, 1/2.8’’,2.5μm,Rolling Shutter 2080×1552 at 60 FPS Available Now
