插座连接器2.54mm 匹配插针Φ0.47mm/单列/双列/焊尾2

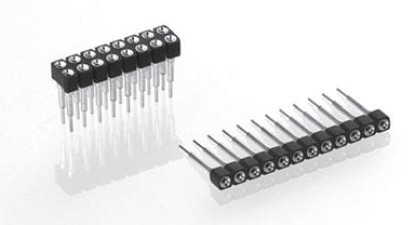

    • 插座连接器2.54mm 匹配插针Φ0.47mm/单列/双列/焊尾2 互连插座条,焊尾。

    • Tel:0510-85578880


互连插座条,焊尾。



技术规格(通用规格见第43页)
绝缘体黑色玻璃填充聚脂PCT-GF30-FR
可燃性 UL94V-O
车针体黄铜CuZn36Pb3(C36000)
接触簧爪(4爪) 铍铜合金(C17200)
匹配插针Φ 0.40到0.56mm
插拔力插入力:2N,典型值,拔出力:1N,典型值
(抛光钢量规,Φ0.43mm)
机械寿命最小500个循环
额定电流 3A
接触电阻最大10mΩ
绝缘强度最小1,000VRMS



NN代表针数:用要求的针数替代NN。例如:对16针双列型,将
416-83-2NN-41-007101变为416-83-216-41-007101。



316-PP-1NN-41-XXX101
互连插座条,焊尾,单列
现有车针数目: 2到64
(标准车针数目:64)



416-PP-2NN-41-XXX101
互连插座条,焊尾,双列
现有车针数目: 4到72
(标准车针数目:72)



现有车针长度
车针长度                                      车针直径                                XXX 代码
L1 (mm)     L2 (mm)              d1 (mm)       d2 (mm)
   6               4.2                      1                0.51                            006
   7               4.2                      1                0.51                            018
   8               4.2                      1                0.51                            003
   9               4.85                    1                0.46                            012
  10              4.2                      1                0.51                            007
  11              4.2                    0.85              0.51                            002
  12              4.2                      1                0.51                            008
  13              4.2                      1                0.51                            009
  15              4.2                      1                0.51                            001
  18              4.2                      1                0.51                            011
  22              4.2                      1                0.51                            004
  33              4.2                      1.18            0.51                            013
